Pros : Good value for money, Light wieght and good build quality
Modem+Wi-Fi router, Dual Band-2.4GHz and 5GHz, USB port
Cons : None
Bottomline : The Archer is very user friendly and works at optimum speed for which it is designed. It’s easy installation makes it more attractive than its competitors in the market.
TP-LINK Archer D20 (AC750) is Wireless 802.11ac Dual Band ADSL2+modem router that can support data transfer rate of up to 750Mbps, it is combination speed of two bands i.e. 300Mbps over 2.4 Ghz and 433Mbps over 5GHz.
TP-Link Archer Design and Features

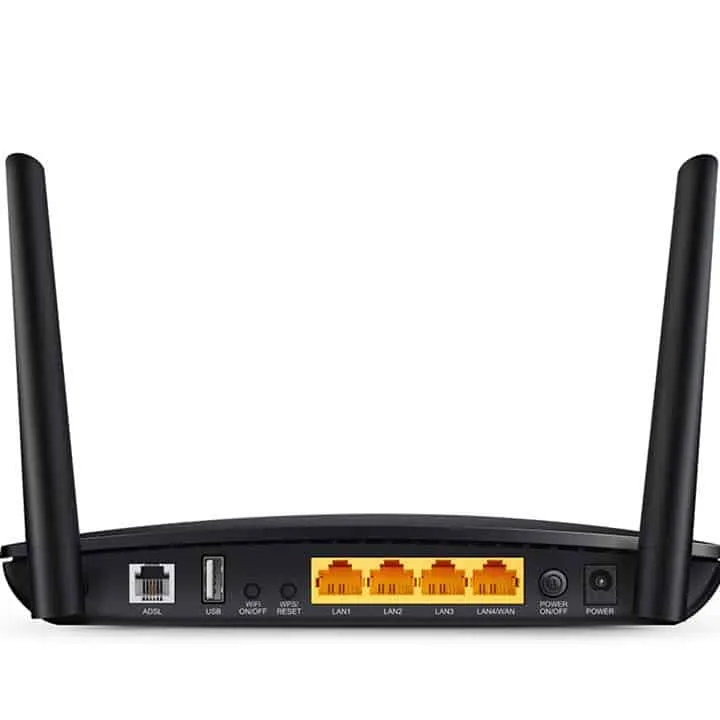

It has a clamshell design and comes in black color. It supports ADSL and Ethernet Wan connection to provide internet connection. At the back side, it has 4 ethernet port while 4 port work as LAN and WAN port; all the LAN can accept connection from fiber/cable modems using Ethernet cable. It also has USB slot that lets you connect a hard disk or printer devices on your network and can share files & media at home or via the FTP server while away from home over Wi-Fi. Besides all of this it comprised on/off button, WiFi and WPS reset, two antennae and power jack at back.
/pcq/media/post_attachments/wp-content/uploads/2016/09/Tplink.jpg "tp-link-archer-d20-ac750")
The interface of this router is really very initiative and atheistic. Anyone can install and manage this router easily without any hassle. For a smartphone, TP-Link provides a TP-LINK Tether app that can use to operate router by your phone. For children safety, it has parental Controls option that allows parents or administrators to establish restricted access policies for children or staff. It also supports IPTV protocol to watch your favorite TV channels over the LAN.
/pcq/media/post_attachments/wp-content/uploads/2016/09/tp-link-archer-d20-ac750.jpg "tp link archer d ac")
TP-Link Archer Performance
We tested the modem and Wi-Fi router functionality and the signal performance by using an isolated ‘N’ network with the router connected to two machines, one wirelessly and the other with cable. Apart from these two machines, we have also used it with smartphones. This router was connected with 10Mbps line and we played a few online games and didn’t face any lag.AT 5Ghz band. It gives us a range of roughly 12 meters along obstacles. To check it through, we used the ‘Qcheck 3.0′ benchmark, we checked average throughput with a 1000 KB payload. In this test, it clocked at the speed of 72 MBPS. We transferred 61 MB of data from one machine to the other and here too, it took 12 seconds. It performed well in every test, except the file transfer speed test. Using Wi-Fi Network Analyzer, we tested the wireless speed of the router and it resulted in 86 MBPS of speed and -42 dBm of signal strength.
The Archer is very user-friendly and works at optimum speed for which it is designed. Its easy installation makes it more attractive than its competitors in the market.
